Boyd Coddington Wheels

Boyd Coddington
Cast Series

Set of 4 wheels...
17" $980
18" $1200
20" $1600
22" $2400
(22" in 6-lug only)

Wheel Sizes
17x7, 17x8, 17x9.5*
18x8, 18x9.5**
20x8, 20x9.5*
22x10 (6-lug only)

* Add $10 per wheel
** Add $20 per wheel

Wheel Features:

Traditional stepped outer hoop
Polished finish
Custom built to order
Machined and assembled in USA
a-356 center construction
Hub Centric
Exacting Tolerances
Available in 5 lug and 6 lug

5-lug has 5-spoke design

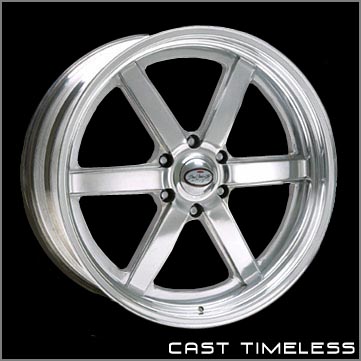

6-lug has 6-spoke design (Shown)
RWD applications

22x10 Size available (in 6-lug only)

Backspace / Offset
Available in 1/8-inch Increments

size	min		max
	in	mm	in	mm

17x7	3.75	-6	4.625	16
17x8	3.75	-19	5.625	29
17x9.5	3.75	-38	7.25	51
18x8	3.75	-19	5.625	29
18x9.5	3.75	-38	7.25	51
20x8	3.75	-19	5.625	29
20x9.5	3.75	-38	7.25	51
22x10	4.0	-38	7.0	38

If you want assistance in selecing wheel size or backspacing,
please contact us with your Wheel Fitment Questions

Wheel Order Terms

Order

22x10 Timeless 6 on Chevy Tahoe

Back to Cast Series Wheels
