Air Ride Technologies -  Air Suspension

Lay Frame on 20s!

Sportruck.com is an authorized Air Ride Technologies Dealer.
Please contact us for more information and discount pricing on the full line of Air Ride technologies parts.

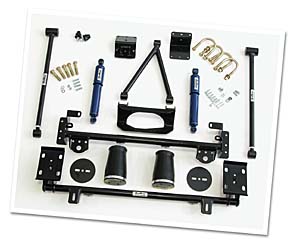

Bolt-on 3-Link Wishbone Rear Air Suspension

FEATURES:

  • Easy bolt-on installation, NO welding required!

  • 8" drop

  • No gas tank modifications!

  • No C-notches necessary and no intrusion into the bed

  • Inboard airspring location for more tire clearance

  • All components powdercoated

This is the air suspension system for S10 owners who do not want to cut up their trucks. It will provide up to 8" of drop WITHOUT cutting the frame-rail OR the bedfloor and requires NO welding or fabrication to install..
Application Part Number MSRP Your Price
82-03 Chevy S-10 / GMC Sonoma Rear Air Bar ABAR11003
$995.00
 $885.00

 ORDER

Choose from these Air Ride Technologies Front Air Suspension parts for a full air ride:

Description

 Part Number Your Price
82-03 S10 Front ShockWave
with tubular lower control arms
(use with standard Airbar S10 rear system)		 SKW1011-ARM $900.00
S-10 Front Cool-Ride ARF5000 $420.00
S-10 Front Cool-Ride
with tubular lower control arms
and bolt-on shock mounts		 ARF5000-ARM $600.00
S-10 Front Cool-Ride
with tubular upper & lower control arms
and bolt-on shock mounts		 ARF5000-ARM-ARM $800.00

 ORDER



Bolt-on 3-Link Wishbone Rear Air Suspension

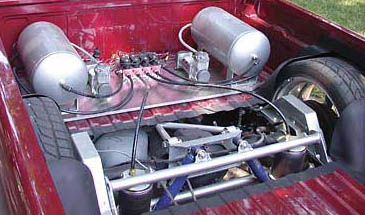

RoadGrater pictured with ARC4800 BigRed MAX compressor system (sold separately)

FEATURES:

  • Complete bolt-on installation, NO welding required!

  • Up to 12" of drop

  • Gas tank crossmember adds driveshaft clearance & framerail reinforcement

  • No need to grind out OEM rivets!

The new RoadGRATER system from Air Ride Technologies includes a BOLT-ON super C notch assembly that is installed OVER the existing framerail BEFORE cutting. This ensures the rear frame section remains properly aligned with the front. The super C notches are contoured around the OEM rivets so you don't have to spend hours trying to grind hardened rivets out! The airspring crossmembers easily bolt on to the super C notches and add to the structural integrity of the RoadGRATER system. The OEM gas tank crossmember is removed with a sawzall (again, no rivets to grind) and the new RoadGRATER crossmember (which includes a new gas tank mount) is bolted into place. The S10 RoadGRATER system is designed to be used with at least a 26" tall tire (275/35-18) and is capable of setting the frame on the ground with up to a 28" tall tire (275/35-20). Installation time is estimated at 4 hours.
Application Part Number MSRP Your Price
82-03 Chevy S-10 / GMC Sonoma
Rear RoadGRATER System		 RGR1000
$1495.00
 $1330.00
Optional S10 bed floor cover (stainless) RGR1050

TBA
Optional S10 wheel tubs (stainless) RGR1150

TBA

ORDER

Choose from these Air Ride Technologies Front Air Suspension parts for a full air ride:

Description

 Part Number Your Price
82-03 S10 Front ShockWave
with tubular lower control arms
(use with RoadGrater Rear system)

RGR1011-ARM

 $945.00
S-10 Front Cool-Ride
with tubular lower control arms
and bolt-on shock mounts		 ARF5000-ARM $600.00
S-10 Front Cool-Ride
with tubular upper & lower control arms
and bolt-on shock mounts		 ARF5000-ARM-ARM $800.00

 ORDER
