AIRLIFT - Easy Street Air Suspension

Air Lift introduces a new high performance air spring, the Generation II. Goodyear and Air Lift have teamed up to design a no-stretch, high strength rubber flex member which will not burst or "balloon" under high pressure like ordinary air bags.

These new Generation II bags are available in both a Standard Series (rated 180 PSI) and Extreme Duty Series (rated 300 PSI).

The diagram above illustrates all the new features that set the Generation II - Extreme Duty Series bags apart from all other air springs on the market!

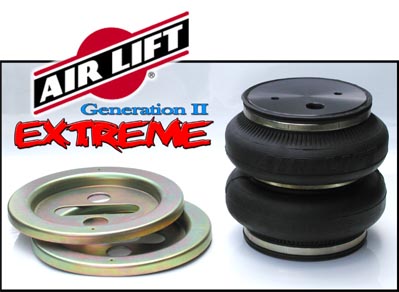

Generation II - Extreme Duty Series

� New high-strength, no-stretch flexmember
� Bonded and crimped endplates
� Billet aluminum endplates
�1/2" single and dual air ports
� External steel expansion control ring
� Roll plates included
� One year limited liability warranty
� Lifetime crimp failure warranty

Generation II - Standard Series

� New high-strength, no-stretch flexmember
� High-strength Zytel� endplates
� Single 3/8" air port for 2B6
� Single 1/2" air port for 2B7
� Roll plates for cut/pinch protection
� 90 day limited liability warranty

Air Springs
Generation I
Part No. Description

Air Port(s)

 Retail Your Price
Sleeve Bags
AL.50238 Sleeve  1/2" $70.00 $59.95
AL.50204 Sleeve NEW! (similar to Firestone F9000)  1/2" NEW! $79.95

2B6
Generation I
AL.50658 2B6  3/8" $66.50 $56.95
AL.50657 2B6 (Firestone 25c Replacement)  1/2" $89.95 $76.95
AL.50654 2B6  1/2" $79.95 $67.95
AL.50651 2B6 Dual 1/2" $84.95 $72.95

2B6 Extended
Generation II - STANDARD
AL.50656 2B6 Extended
(Firestone 255c replacement)		  1/2" $90.00 $76.95
AL.50319 2B6 Extended  1/2" $85.00 $72.95
AL.50320 2B6 Extended  3/8" $80.00 $68.95
Generation II - EXTREME
AL.50321 2B6 Extended  1/2" $135.00 $114.95
AL.50322 2B6 Extended DUAL 1/2" $135.00 $114.95

2B7 GenII - Extreme - 1/2" Port
 2B7
Generation II - STANDARD
AL.50323 2B7 (Firestone 224 replacement)  1/2" $85.00 $72.95
AL.50324 2B7 DUAL 1/2" $85.00 $72.95
Generation II - EXTREME
AL.50325 2B7  1/2" $135.00 $114.95
AL.50326 2B7 DUAL 1/2" $135.00 $114.95

Order

AIR BAG INFORMATION

Bag Type Max
Height
(inches)		 Min
Height
(inches)		 Max
Diameter
(inches)		 Max
Pressure
(PSI)		 Max Load
@100 PSI		 Design
Height
(inches)
Sleeve # 50238 9.2" 3.1" 5.1" 125 900 lbs 6.5"-8.5"
Sleeve # 50204 10.9" 4.1" 6.8" 125 1680 lbs 7.0"-8.6"
2B6 Regular 7.7" 2.3" 6.5" 100 2,025 lbs 4.5"-6.5"
2B6 Extended 9.5" 2.8" 6.8" 180*/300** 2,190 lbs 5.0"-7.0"
2B7 9.5" 2.9" 8.2" 180*/300** 2,660 lbs 6.0"-8.0"

*Maximum pressure for the Standard Series is 180 PSI
**Maximum pressure for the Extreme Series is 300 PSI



Bag Type Top
Fasteners		 Bottom
Fasteners		 Hole
Ctrs.
Sleeve 1/4"-20 1/2"-13 1.875"
2B6 Regular 3/8"-24 3/8"-24 2.75"
2B6 Extended (Air Lift Bolt Pattern) 3/8"-24 3/8"-24 2.75"
2B6 Extended (Firestone 255c Replacement) 3/8"-24 3/8"-24 1.75"
2B7 3/8"-24 3/8"-24 2.75"
